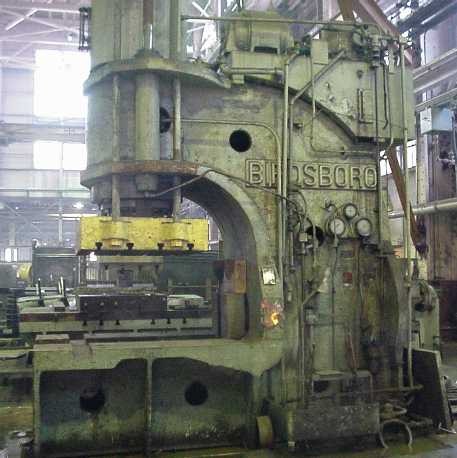

View
of the identical press standing up
Specifications:
Manufacturer:
BIRDSBORO STEEL FOUNDRY AND MACHINE CO.
Model:
#350/150 - 20 C
Manufactured:
1942, Rebuilt by U.S. Gov't in 1983
Vertical
Ram: 350 Tons capacity
Bed Area:
48" x 48"
Ram area:
42" x 42" (Vert Ram)
Horizontal
Ram: 150 Tons capacity (16" x 24" Platen)
Stroke:
30+ inches
Throat:
30" from center of vert. ram to face of Horizontal Ram Platen
38" from center of vert. ram to rear of throat with the
horizontal ram assembly removed
Hydraulics:
Oilgear (pump is DP2025 2500 psi 25 H.P.)
Electrics:
Motor 25 H.P. 220/440 V. 3 Ph. 60 Cy.
Weight:
70,000 lbs each
Dimensions:
176" high, 60" wide, 156" long (standing)
Can be shipped in one piece
Location:
Chesapeake, Virginia
Condition:
These presses have been in U.S. government storage.
They appear to be in generally good condition, and
have now been moved to a nearby riggers facility.
Some minor piping/valving may be damaged or missing.
COMMENTS:
These are conventional C-frame hydraulic presses
with top mounted hydraulics. They are flush floor
machines with no pit required. Birdsboro is a well
known top quality American manufacturer. The upper

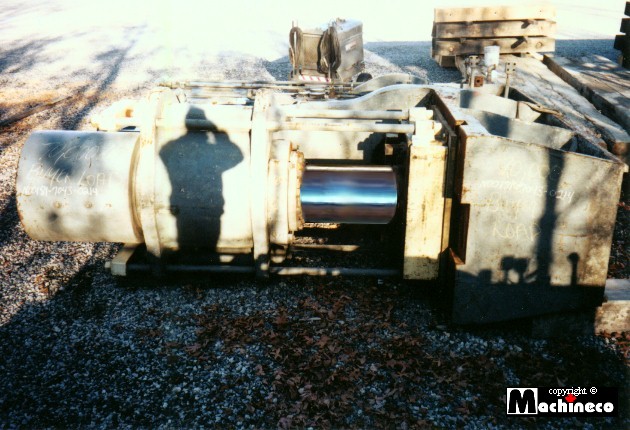

ram is fitted with a square platen. There is also an
auxiliary horizontal ram mounted in the back of the
throat fitted with a smaller platen guided in a
dovetail in the press bed. The use of this 150 ton
horizontal cylinder is optional.
IMPORTANT
NOTE:
There are TWO of these presses available and they
are identical twin sisters. This means they could
be ganged and operated side by side to give a 700
TON press with a larger bed if so desired.
Price: Net, F.O.B. Virginia . . . . . . . . . $34,000.00 USD each
Price: Net, for two . . . . . . . . . . . . $58,000.00 USD Pair
|
|||
