Stock No:                        9145

Specifications:

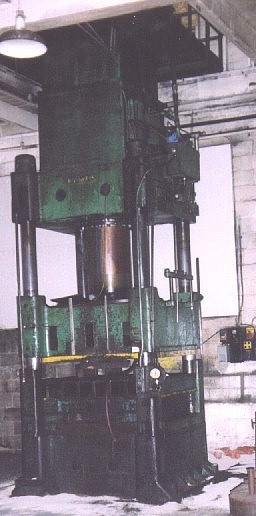

Brand:                          "ELMES"
Manufacturer:             Elmes Press Division
Design Type:               Vertical, down-acting, 4 post guided-ram
Capacity:                     375 Tons maximum pressing force
Year:                            New 1950's ±
Bed Area:                    48" Left -Right x 45" Front -Back , clear space inside the 4 posts
Bed Outside:                More
Stroke:                         0" - 36"
Daylight:                      60"
Die Cushion:                Bed opening to permit a 75 ton cushion

Speed:
     Advance:                 440  ipm
     Pressing:                 16 - 25 ipm
     Return:                    390    ipm

Hydraulics:                   Top mounted tank , motor and pump
                                       Single main cylinder
                                       Double action on main cylinder for return.

Horsepower:                 40 H.P. motor
Electrics:                       440/3/60
Dimensions:                   80" Left - Right x 62" Front - Back x 25 ‘ High

NOTES:
The main cylinder appears in excellent condition, as do the four posts.  The press is
well designed and  built and is of all cast-construction.  The top mounted hydraulics
have an access walkway platform surrounding.  It looks in good overall condition and
can be put under power in the plant where it is installed by arrangement.   Removal is
directly through a removable  roof section.

Price, ex location, Western Wisconsin, USA. . . . . . . . . . . . . . . . . . . . .$ 29,500.00 USD obo
