Stock No:                           1831

Specifications:

Capacity (combined):       500 Tons
Bed area:                          48" x 48"
Style:                                 Full frame, gib guided
Type:                                 Double action, and with cushion
Blankholder tonnage:       100 Tons (4 cyls)
Main ram tonnage:           400 Tons (20" diam.)
Daylight:                            63" (overall - bolsters out)
Cushion capacity:             100 tons,
                                           18" stroke,
                                           5320 PSI max  (7.75" diam. ram)
Blankholder stroke:         16"
Bolsters:                            Upper: 6" thick, full surface (incl. blankholder)
                                           Lower: 6" thick, full surface
Mounting:                          Flush floor
                                           (3" pit needed for the tie rod nuts, or could
                                            use a bolstered floor depending on the
                                            desired bed/work height.)

Comments:
                This machine was last installed and used as a single action press. It was
removed from active service (and was in good working condition) in a large plant
closure about 5 years ago. In storage since. The press has been stored outdoors
in one piece and has not been disassembled. Pumps, motor, etc have always been

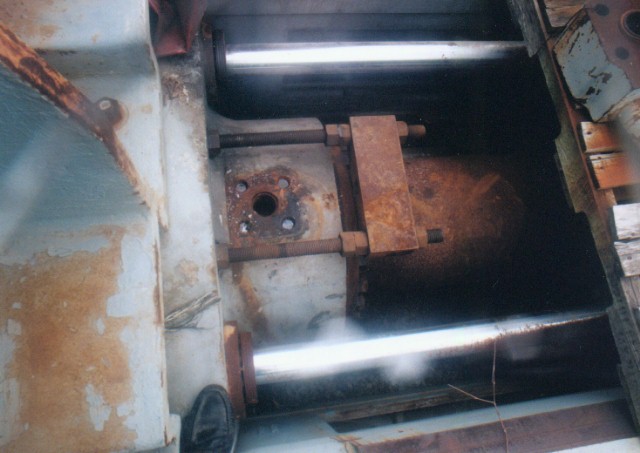

stored indoors. The blankholder pistons are chromed and are in good condition.
The main ram has some rust and should be refurbished, as is also the case for the
piping etc.

            This U.S. built machine is presently located in southern Ontario, and ships
duty free anywhere in North america. The press frame will ship by flatbed in one
piece.

Price quoted FOB carrier (Niagara Falls, Ont.): . . . . . . . . . . . . . Net $38,500.00 USD
