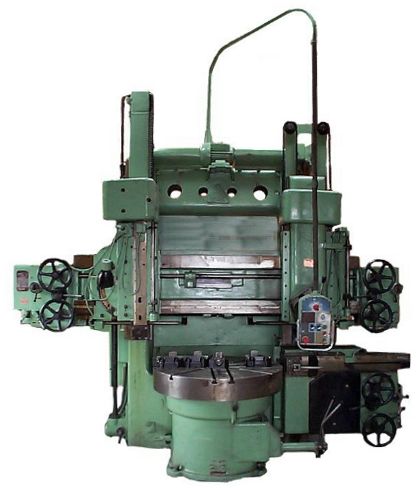

Stock No:                                                            9245

Specifications:

Manufacturer:                                                    TOS
Model:                                                                 SK12
Year:                                                                   1962
Reconditioned:                                                   1975
Table Diameter:                                                 46.5"
Max. Swing when turnig w/Side Head:             49.2"
Max. Swing w/out Side Head:                           53.15"
Max. Height Under Cross Rail:                         44.7"
Max. Height Under Rail Head Toolholder:      39.37"
Max. Vertical Distance, Side Head Toolholder
to Table:                                                              33.5"
Vertical Travel of Cross Rail:                           33.5"
Vertical Travel Travel of LH Ram:                  27.95"
Vertical Travel of RH Turret Slide:                 21.6"
Horizontal Travel of Side Head Ram:              19.68"
Max. Table Load Capacity:                               8,800 LBS
Swivel of LH Ram Head on Rail:                      +/- 45 DEGREES
Infinitely Variable Table Speeds (4 Ranges):   5.3-225 RPM
24 Feeds:                                                             .0024 TO 0.36 IPR
Rapid Traverse Rate:                                         55 IPM
Threading Range:                                               Inch: 1 to 28 TPI; Metric: 2 to 20 mm

TAPER TURNING CAPACITY:

Number of Tapers Turned w/Change Gears: 12
Range of Apex Angles of Tapers:                    90° to 168°
Range of Apex Angles of Tapers
With SSlide Inclined:                                         0° to 172°

DIMENSIONS:

Weight (Approximate):                                     39,000 LBS
Floor Space:                                                       152"LR x 98"FB
Max. Height, Rail UP:                                       168"

EQUIPPED WITH:

• T-Slotted Table with set of (4) HD Faceplate Jaws
• LH Swivel Type RAM HEAD w/Square Toolholder, Threading, and taper turn. attach.
• RH Pentagon Turret Head
• RH Side Head with Square Toolholder
• 5-Position Turret Feed Stops for both Rail Heads for Vert. and Horiz. Travels
• Infinitely Variable Table Speeds
• Pendant Controls
• Power Rapid Traverse, All Travels
• Power Rail Clamping
• Scales, All Travels
• Splash Guards
• Miscellaneous Turret Tooling
• 50 HP, 3Ph/50Cy/380Volt Variable speed Commutator main drive Motor with controls

    * * VERY GOOD CONDITION * *

Price, ex-location . . . . . . . . . . . . . . . .  CALL
