| Brand |
Marathon LeTourneau |
| Model |
SSB-100 |
| Type |
Intermodal |
| Units |
U.S. |
METRIC |
| Operating Weight |
255,000 lbs |
115,668 kg |
| Capacity |
100,000 lbs |
45,359 kg |
| Inside Span between legs |
71' |
21.6 m |
| Lifting Height |
30'0" |
9.14 m |
| Wheelbase |
25'0" |
7.6 m |
| Wheel to wheel, centerline |
75'0" |
22.99 m |
| Gantry Travel Speed |
0-440 FPM |
0-134.1 mpm |
Hoist Speed:
Rated Load
No Load |
0-34 FPM
0-65 FPM |
0-10.3 mpm
0-19.8 mpm |
| Trolley Speed |
0-100 FPM |
0-30.5 mpm |
| Steering |
0-90° |
- |
| Outside Max Dimension |
82'0" |
25 m |
| Overall Height |
53'0" |
16.2 m |
| Power Source |
GM 6V-71 or Cummins L 10
engine with AC generator
supplying power for all
functions |
| Drive |
DC two (2) wheel drive
through chain and sprocket |
Braking:
|
Hoist Service Braking -
Dynamic/Regenerative
Hoist Holding Brakes -
Multiple Disc "Fail Safe" Type
Trolley Service Braking
- Regenerative
Trolley Parking Brakes
- Multiple Disc "Fail Safe" Type
Gantry Travel Service Braking
- Regenerative
Gantry Parking Brake -
Multiple Disc "Fail Safe" Type |
| Wheels and Tires |
Four (4) 33.25 x 35 tires,
38 ply, 100 psi |
| Steering |
Corrective - differentially
controlled
90 degree - hydraulically
controlled |
| Power System |
AC electric power for heaters,
lights, horns and beacons
DC electric power for gantry
travel, hoist and trolley |
| Fuel Tank |
Capacity for minimum 24-hour
operation |
|
#2 .....

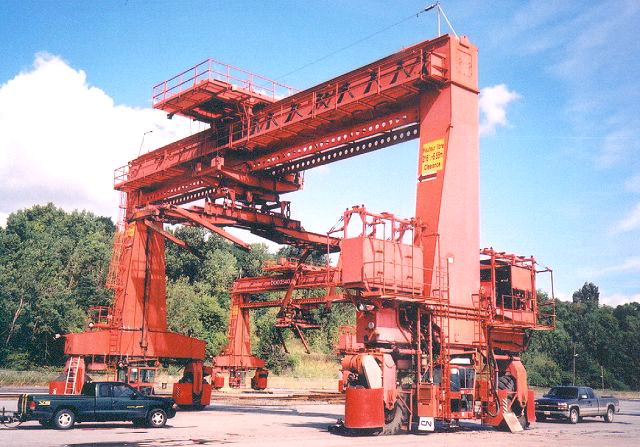

Two
SSB-100 cranes could be used in tandem to lift up to 100 Ton!
