Stock No:                                9173

Specifications

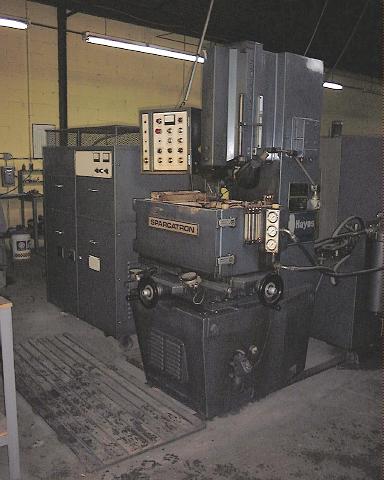

Brand:                                   SPARCATRON
Model:                                   SM24
Type:                                     Ram type
Capacity:                              100 Amps
Serial Number:                     #LA/24/2
Motor:                                   3 HP
Tank Capacity:                     68 litres
Pump:                                    15 G.P.M.


ITEM DESCRIPTION	BRITISH UNITS	METRIC UNITS
Machine Head
Vertical Travel	10 ins	254 mm
Electrode Platen
Overall Dimensions	8 in x 6 in	203 mm x 152 mm
Longitudinal 'T' Slots (2 off)	0.515 in	13 mm
Longitudinal 'T' Slot Centres	3 in	76 mm
Electrode
Maximum Weight	200 lbs	90.7 kg
Work Table
Overall Dimensions	24 in x 16 in	609 mm x 406 mm
Longitudinal 'T' Slots (3 off)	0.562 in	14,30 mm
Longitudinal 'T' Slot Centres	4 in	102 mm
Height above floor level	37 in	940 mm
Longitudinal Travel	15 in	381 mm
Transverse Travel	10 in	254 mm
Work Piece
Maximum Weight	1086 lbs	493 kg
Maximum Length	27.5 in	700 mm
Maximum Width	17.5 in	445 mm
Maximum Height (allowing 2 in (50 mm) submersion)	10 in	254 mm
Work Tank
Internal Dimensions	31.5 in x 19.5 in	800 mm x 495 mm
Dielectric Height above Work Table	12 in	305 mm
Maximum Volume of Dielectric	30 UK galls	136 litres
Fixed height of overflow	12 in	305 mm
Daylight
Maximum under Platen	19.25 in	489 mm
Maximum to tooling equipment mounting face	21 in	530 mm
Maximum to underside of Electro-Magnetic Chuck	15.375 in	390 mm



DIELECTRIC STORAGE TANK (TYPE C)

ITEM DESCRIPTION	BRITISH UNITS	METRIC UNITS
Tank Capacity
Dielectric Storage: Max. Total Possible Min. Total Required	106 UK galls 75 UK galls	477 litres 340 litres
Pump Capacity
Quick-Fill and Flushing Pump	15 g.p.m. at 60 p.s.i.	68 litres/min
Dielectric System Pressure - R.V. setting	80 p.s.i.	5.62 kg/sq.cm
Electric Motor Capacity	3 HP	3 HP
Filter Capacity
Double Cartridge Area (Coarse)	7,600 sq.in.	49,027 sq.cm
Single Cartridge Area (Fine)	3,800 sq.in.	24,514 sq.cm
Dielectric System
Time to fill Work Tank	120 secs.	120 secs.
Time to empty Work Tank (gravity)	150 secs.	150 secs.



DIELECTRIC STORAGE TANK (TYPE D) All data given for DST Type C is applicable to the DST Type D, with the exception of filter capacities. The Type D machine provides a Double Cartridge Area of  7,600 sq.in. (Coarse).

ITEM DESCRIPTION	BRITISH UNITS	METRIC UNITS
Hydraulic System
Pump Capacity	0.5 g.p.m.	2,25 litres/min
Reservoir capacity	6.7 UK galls	30,45 litres
Accumulator Charge	210 p.s.i.	14,78 kg/sq.cm
System Pressure	450 p.s.i.	31,63 kg/sq.cm

Price: ex-location in Montreal, Canada . . . . . . . . . . . . . . . CALL
