200 TON H-FRAME HYDRAULIC PRESS

"Canadian Press" 200 Ton H-Frame Hydraulic Press

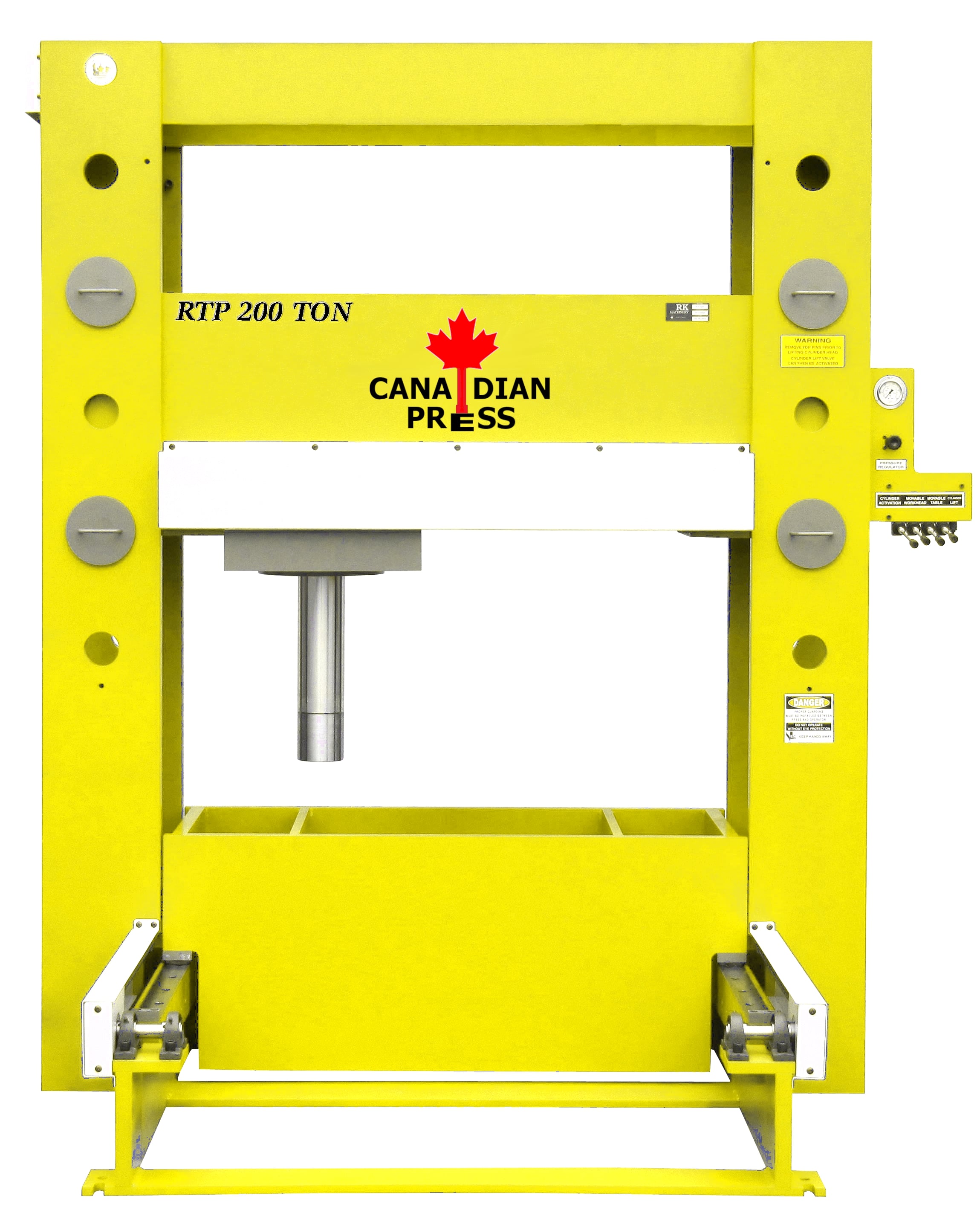

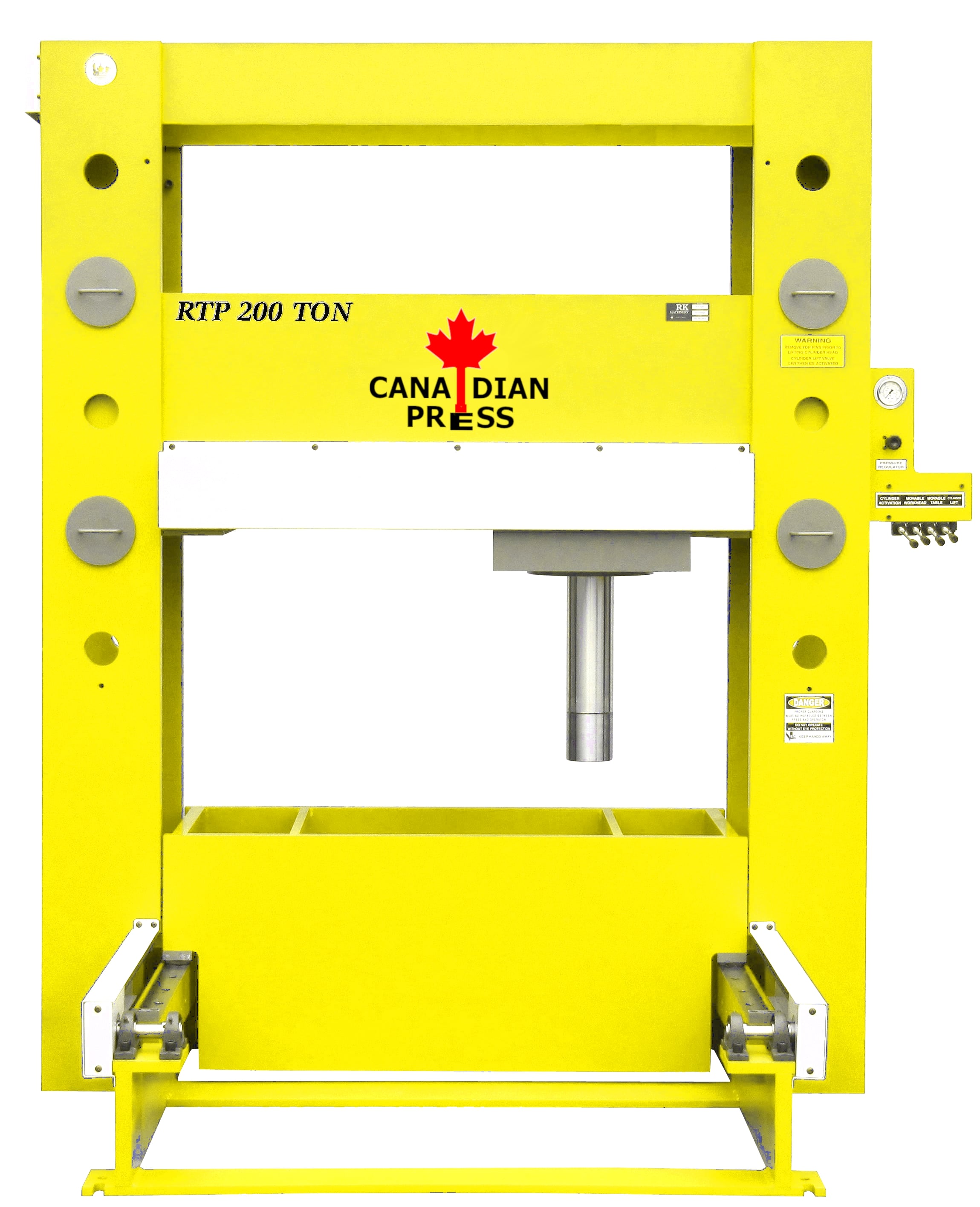

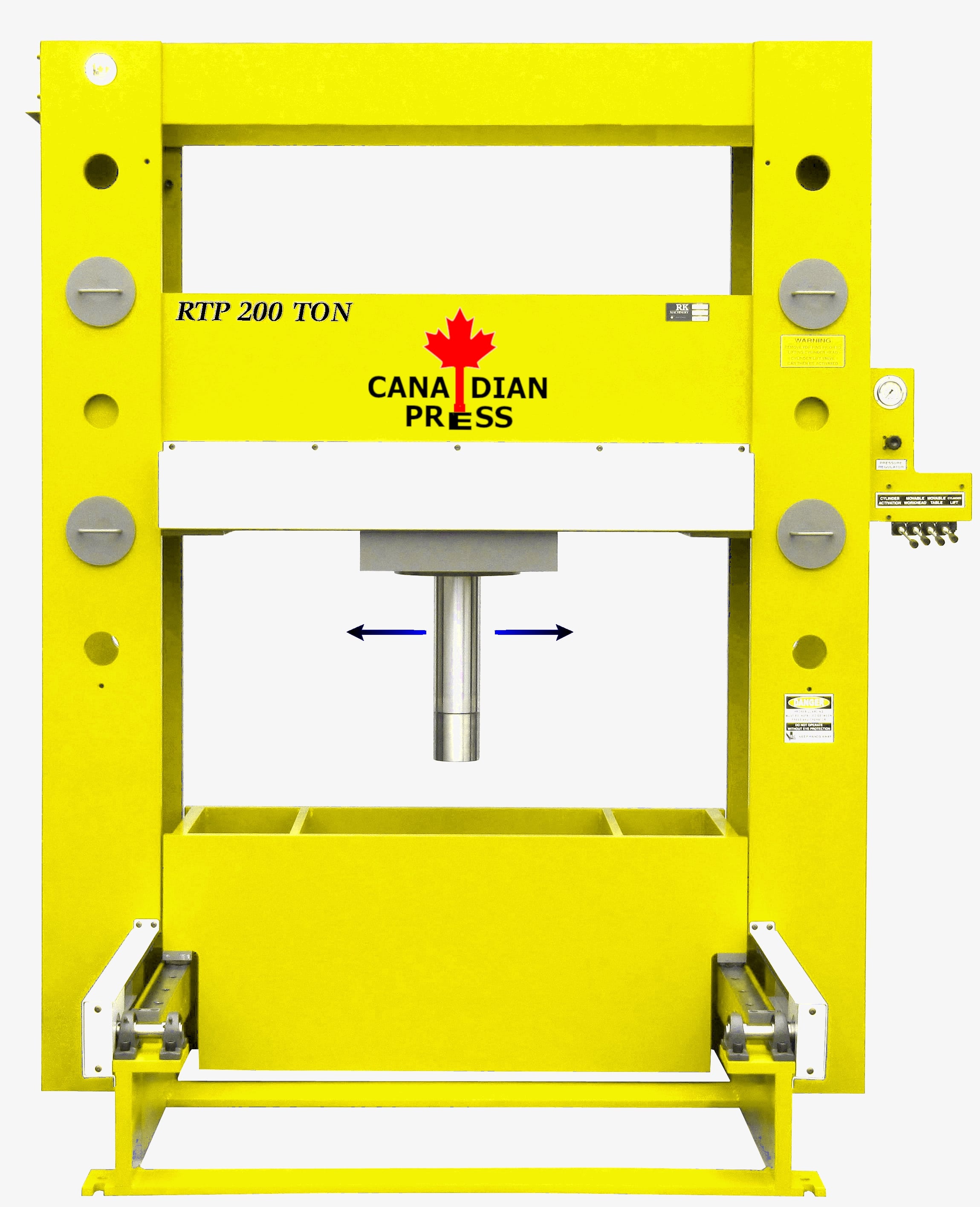

(NOTE: Illustration shows the Rolling Head and Rolling Bed options)

(Click on pictures to enlarge) 200 TON H-FRAME HYDRAULIC PRESS

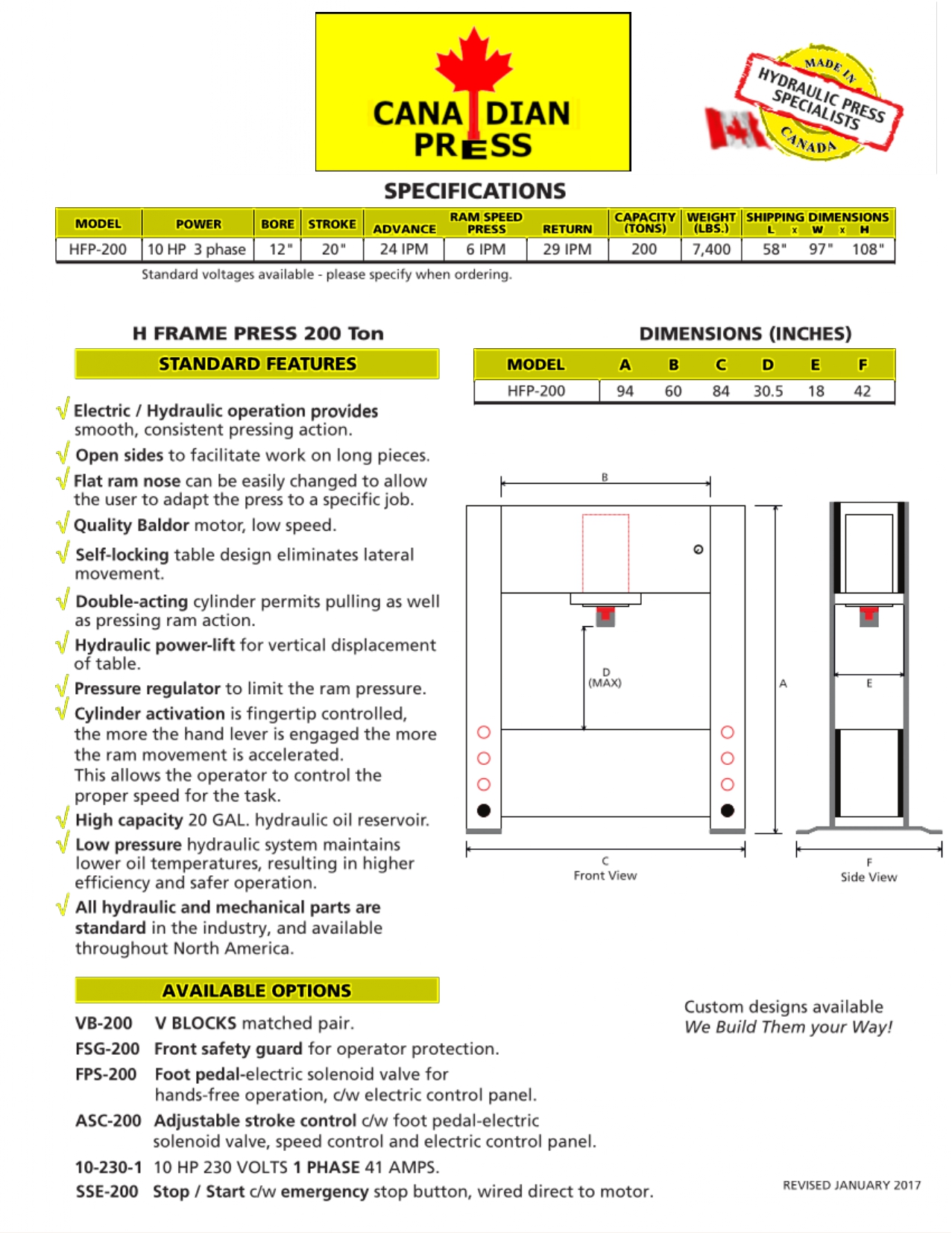

Specifications:

Manufacturer MachineCo (Canadian Press Division)
Model Number HFP-200
Power 10 HP, 3 Phase
Bore 12"
Stroke
20"

Ram Speed

 24 IPM Advance
6 IPM Press
29 IPM Return
Capacity
 200 Tons
Weight
7,400 lbs
Dimensions
58" Length x 97" Width x 108" Height

Our ALL New, All N. American Heavy Hydraulic Presses are carefully crafted using:
1- US components
2- Assembled in Canada
3- Used everywhere.

"It's The All American made heavy-duty press - for YOU"

More Hydraulic Presses - Please Call: (514) 933-1212
