Stock No:                         9174

Specifications:

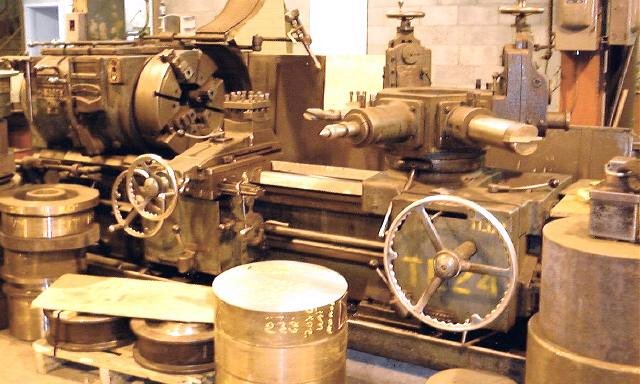

Manufacturer:                 Warner & Swasey (King of Prussia, Pennsylvania, USA)
Model:                              4A,  1616S
Year:                                Late 60's
Serial No:                         WM1500-L65
Spindle bore:                    8 " (Large bore Oil Field model, 9"1/2 bore chuck)
Speeds:                             8 - 212 rpm
Feeds:                               Leadscrew central in bed for tailstock advance (Threading±)
Chuck:                              24" Diameter, 4-jaw
Swing over bed:               29" Diam.
Spindle to Turret Face:   58"
Taper on crosslide:          Yes
Main Motor:                    25 HP
Electrics:                          550 Volts/3/60
Weight:                             8 tons (est.)

Note:
        This lathe is ready to ship at this time.  It offers excellent value, as large bore
lathes are not common.  Shipping to Toronto area can be done for less than $800.

Comments:
        This is a somewhat older model but still capable of doing a good days work.  It was
used only occasionally over the last 15 years or so to do boring on small flanged wheels.
It is ideal for larger or heavier pieces or especially for boring,  threading etc. on pipe up
to 8"± diameter.  It's ready to ship.  At the price quoted, we are offering a solid and still precise piece of precision equipment.  Machine returns to USA duty free.

Price, ex-location, Montreal . . . . . . . . . . . . . . . . . . . . . . . . . $ 12,000.00 CAD
                                                                                             or $   7,500.00 USD
