Stock No:                        1692

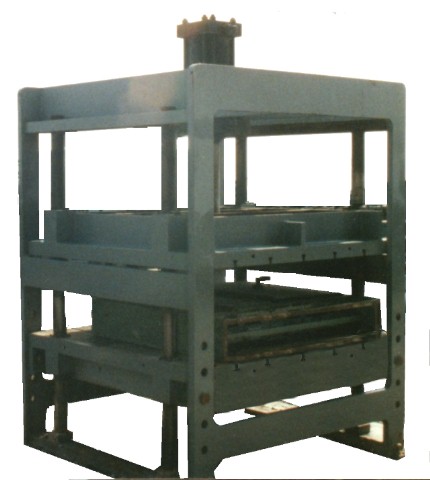

Specifications:

Action:                             Downstroke
Capacity:                         75 Ton
Bed Area:                        66" x 67" (clear); 78" x 71" (total)
Style:                                4 Column fabricated frame
                                          4 Rod guiding (linear bearings)
Cylinder:                          10" diameter, central top mounted
Daylight:                          Adjustable, bed is pin mounted in frame
Positions:                          five: 30/36/42/48/54"
Bed:                                  Fully T-slotted
Ram:                                 Fully T-slotted
Travel:                              20" +
Weight:                            20,000 Lbs (approx.)
Height:                             120" (incl. cylinder)
Electrics:                          575V/3Ph/60

Notes:
        Power unit not included with the press. We have several power units available of various horsepowers, voltages, speeds, etc. which could appropriately be used with this press. (Priced from $1,500 to $3,000 USD)

Price, FOB, ex-location,   .  .  .  .  .  .  .  $12,000.00 USD
