Stock No:                               1677

Specifications:

Pressing Capacity:                220 Tons
Manufactured by:                  Hydraulic Mach'y Co. (Montreal, QC, Canada)
Design/Construction:            4-Post
Tie rod Size:                          (3-1/8")
Hot platens                             Yes
Pit:                                          No
Stroke:                                   20"
Daylight:                                 33"
Crown Area:                          28"x24"
Bed Area inside Posts:          24"x24"   (clear)
Platens:                                  (9) 1-3/8" THICK, oil or steam
Piston Diameter:                    15"
Operation Pressure:              2500 psi
Serial  No:                              1824
Height:     97"
Footprint area:                       26" x 38"
Weight:                                   4 tons±

COMMENTS:

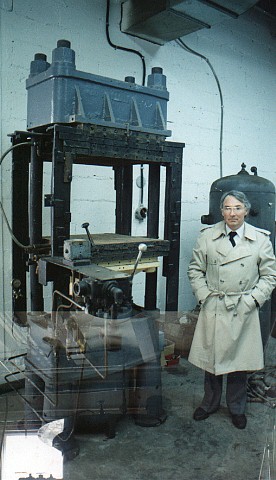

An older press, one tie rod is bent slightly but easily straightened. It is well engineered and designed.  All valving looks complete.  Excellent for molding, etc. or wherever an inexpensive press of this capacity is required.

Power packs would be available at extra cost.

Price,  FOB our warehouse, Montreal . . . . . . . . . . . . . . . . . . . . . $5,900.00 USD
