Line Width .......................... 36"
Line Speed .......................... 420' or 140 Sheets per minute
COMPONENTS ARE AS FOLLOWS:-
ITEM #1 - WEAN-MCKAY 25,000 Lb. Uncoiler, 36" wide, S/N 900-916
With Vickers Pump, 250 min PSI, 1000 max PSI.
Coil Loading Table.
- Plate Weight- 65 Lbs per Base Box - Mininum - Tin
- Strip Width - 36" Maximum - 15" minimum
- Coil Size - 16" I.D. - 20" I.D. w/Filler Plate
60" O.D. Max., 30" O.D. Min.
ITEM #2 - 36" Wide Motor Driven Coil Car, SN WEX-900-916
- Cut Lengths - 22" to 44" maximum
- Press Speed - 50 to 200 Cuts/Minute
- Line Speed - 75 to 733 F.P.M. on 44" Length
- Pack Size - 1680 Sheets Maximum 9,000 Lbs. Maximum
- Average Length Tin Plate sheets - 30" - 40"
ITEM #3 - McKay 2-Roll Coil Pull-Thru, 4" Diameter
OPERATING PROCESS:
- Uncoiler to the Coil Straightener
- Defect Detector and Shear to 4-Station Classifier
ITEM #4 - McKay Straightener Leveller, S/N 7717.
17 rolls: 8 top, 9 bottom; all rolls 1-1/4" diameter.
One - 4-Pile Classifier to collate and stack tin plate sheets
as follows:
a- Pinholes & Surface Defects Pile
b- Undergauge Pile
c- Overgauge Pile
d- Prime Product Pile
Electronic Sensor picks up Defects a - c and signals ahead
which conveyor reject slot to be activated.
ITEM #5 - Inspection Table with dual mirrors, S/N 14010-28
ITEM #6 - Pin Hole Detector
- Electrical Equipment, Hydraulic & Air Equipment
- Various Motors - 15 HP, 5 HP, 3 HP, 1-1/2 HP,1 HP, AND 3/4 HP
ITEM #7 - Wean 2-Roll Pull Thru
ITEM #8 - Wean Flying Cutoff Press, 36" Wide, 20 Ton cap. S/N 953-6-100.

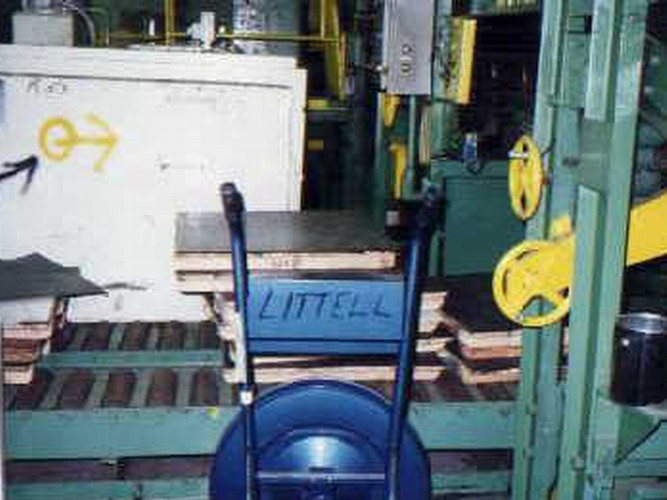

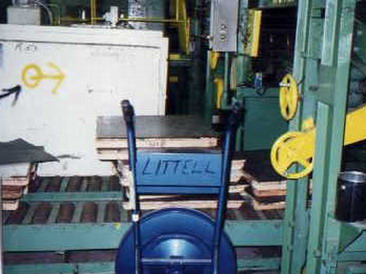

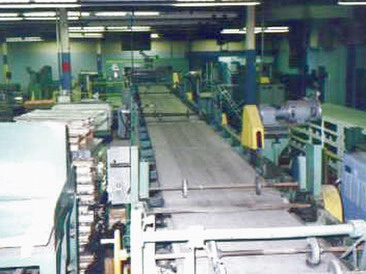

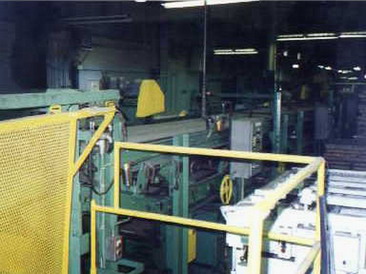

ITEM #9 - Run Off C0nveyor, 40' with 4 sheet stackers drop thru (This is
where fork trucks pick up stacked sheets)

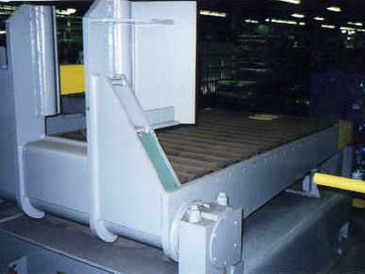

ITEM #10 - Fifth drop down stacker.
Equipment space allotment - 110 ' long 20' wide x 6' H.
Feet per Minute Speed - 420
Good condition - Well maintained
Coil size - 5' Diameter x 5' Width
Maximum Cutting Thickness of 1"
Weight capacity of the uncoiler - 25,000#
Cuts coils into straight edge plates and scrolled edge
5 to 10 HP range - 600 volts 3 phase 60 cycle
CNC Computer Controls
PLC Programs Logical Control - No manual controls
Equipment drawings and diagrams available and photos
Price: $60 000 USD
