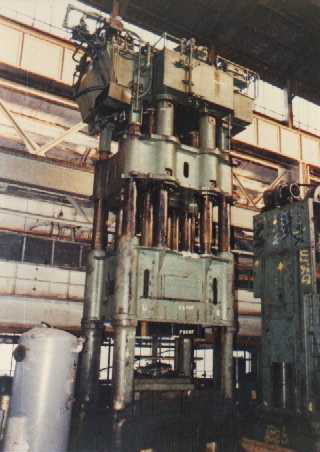

1350 TON "LAKE ERIE" HYDRAULIC PRESS

Specifications:

Rated capacity (tons)..................................... 1350
Draw slide (tons)............................................ 750
Blankholder slide (tons)................................. 600
Cushion .......................................................... 150
Distance between 12" diameter posts ... ...... 86" l-r x 54" f-b
Bed & Blankholder area ................................. 84" l-r x 84" f-b Nominal
Draw slide area .............................................. 61" l-r x 60" f-b
Cushion Plate Area ......................................... 58" l-r x 56' f-b
Drawslide stroke ............................................ 66" Maximum Depth
Blankholder slide ........................................... 42" of Draw
Cushion slide stroke ...................................... 24" Double Action/21" Single Action
Stroke ............................................................ 42" Single Action
Daylight opening draw slide ......................... 128" Over Bolster
Daylight opening blankholder slide .............. 102" Over Bolster
Blankholder rams diameter .......................... 4-12-1/2" @ 2450 PSI
Draw slide rams diameter ............................ 1-22-1/2" & 2 - 11 @ 2512 PSI
Cushion rams diameter ................................ 1 - 10" & 2 - 5-1/2" @ 2200 PSI
O.A. Dimensions ........................................... 180" LR X 130" FB X 410" HIGH

EQUIPPED WITH:

Pumping Unit:
Two (2) Oilgear DX-15025 Pump - 108 GPM, each driven by
250 HP/440/3/60 G.E. Motor
One (1) Oilgear DX-6025 Pump - 44.6

Driven by 60 HP GPM Pump and 30 HP 440/3/60 Motor, Driving
Vickers 60 GPM

SPEEDS:


Closing .............................................. 800 IPM
Prepressing ...................................... 260 IPM @ 250 tons 84 IPM @ 750 tons
Return-draw ..................................... 930 IPM (Platen Only)
Return-draw & Blankholder ............. 680 IPM (Combined)
Cushion ejector return .................... 290 IPM
Cushion pressing ............................. 196 IPM (Reverse Draw to 150 tons)
Pressing ........................................... 56 IPM at 1350 tons
Single Action
Controls: Full Pushbutton Operation with Stations front and rear

Price: $15 000 USD
